Intro to Magnetism

Intro to Magnetism

Magnetism is a physics phenomenon created by moving charge.  Two types of magnets include permanent magnets and electromagnets.

Electric and Magnetic Fields

Electric fields are created by static (not moving) charged objects

Magnetic fields are created by moving charges

Classical Physics Magnetism Models

The fundamental property that creates magnetism is electrons spin.  We will stick to a classical physics description in this page as we envision a particle spinning.  Quantum physics envisions a electron having qualities between a particle and wave.  Without being "strictly" a particle, what we consider spinning may be some other function.  Either way, classical physics can explain magnetic phenomenon and classical physics models can be used to explain and predict.

Dipoles and Spinning Electrons

An election spinning creates dipoles as seen in the electron model.  A dipole relates to the two poles, north and south, created by a spinning electron.  When a north and south pole is present, a magnetic field is created.

Electrons spinning clockwise or counter clockwise have reverse north and south dipoles.

North poles and south poles are attracted to each other so in most materials electrons pair.  Pairing means the north pole of one is next to the south pole of the other.  Election pairing neutralizes magnetic properties created by an individual electron spin.

Pairing Magnetic Dipoles Created By Electron Spin

Pairing Magnetic Dipoles

Magnetic Attraction and Repulsion

In magnetic materials that have dipoles:

Opposite Poles Attract

  • North attracts south
  • South attracts north

Same Poles Repel

  • North repels north
  • South repels south

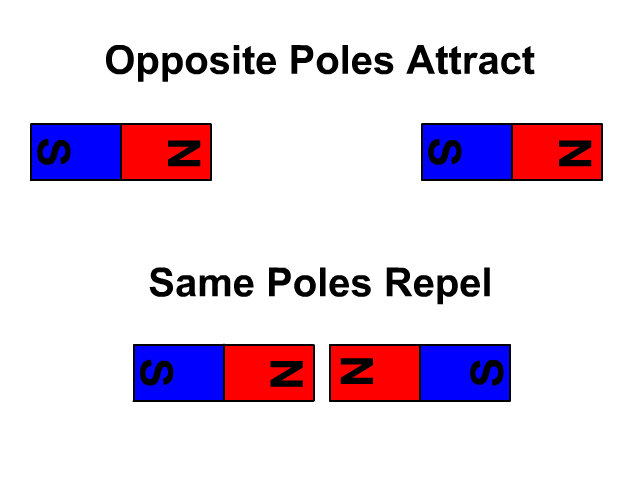

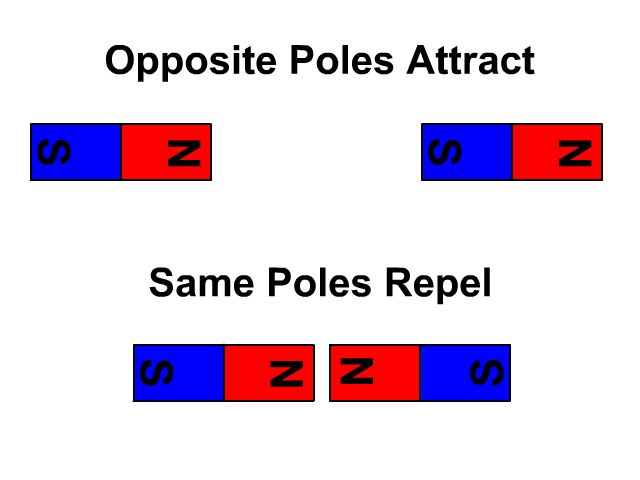

Opposite Magnetic Poles Attract Similar Poles Repel

Ferromagnetic Materials

Ferromagnetic materials are special types of metals where electrons spin the same direction called domains.  Domains maintain the dipole, north and south, and of the similarly spinning electrons.  The bar magnet in the model represents the dipole of the domain which is the same as each individual electron.

Iron, cobalt, and nickel are common ferromagnetic elements having domains.  Some alloys, which are mixtures of two or more metals, are also ferromagnetic.

Magnetic Alloys

  • Steel Magnets, are an alloy of iron and carbon.  Steel magnets are traditionally used as a permanent magnet where durability is important.
  • Neodymium magnets, are an alloy of neodymium, iron, and boron.  Neodymium permanent magnets are fragile, breaking easily, but are the strongest magnets for commercial applications.
Magnetism Domain

Domain

Magnets Have Domains Aligned

The difference between a ferromagnetic material that is not magnetized or magnetized depends on domains being aligned.

The term "soft" can be used to describe ferromagnetic metals that do not easily remain magnetized.  Iron and nickel are soft, domains become unaligned, loosing magnetism when a magnetic field is removed.

The term "hard" describes ferromagnetic metals like steel and neodymium that keep domains aligned after a magnetic field is removed.

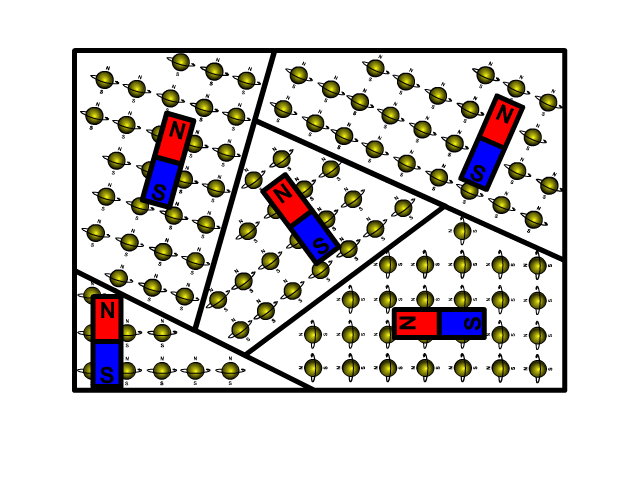

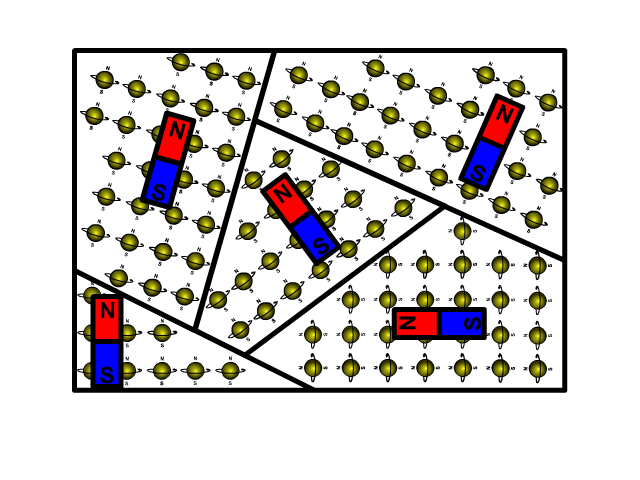

Unaligned Domains in a Soft Ferromagnetic Metal

Unaligned Domains in a Ferromagnetic Metal

What is an Induced or Temporary Magnet?

  • An induced or temporary magnetic is created when a "soft" ferromagnetic material is in the presence of an external magnetic field.
  • Domains align and that object becomes an induced temporary magnet.
  • When the external magnetic field is removed will magnetism will easily be lost.

What is a Permanent Magnet?

  • A permanent magnet is different than a temporary magnet because a "hard" ferromagnetic material is placed in a strong magnetic field.
  • Domains align with a magnetic field and maintain that alignment after the magnetic field is removed.
Magnetic Induction

Domains Aligning in a Magnet

Ways to Demagnetize a Magnet

  1. Heating a magnet makes molecules move around quicker causing domains to lose alignment.
  2. Dropping or hitting the magnet caused domains to lose alignment.

What Happens if you Break a Permanent Magnet?

Breaking a permanent magnet creates two weaker magnets.  The dipoles would be aligned the same direction as previously.  The opposite poles would be next to each other and attract.  See how the north of one piece is next to the south of the other it broke from.  The inherent cause of magnetism, electron spinning direction remains the same.

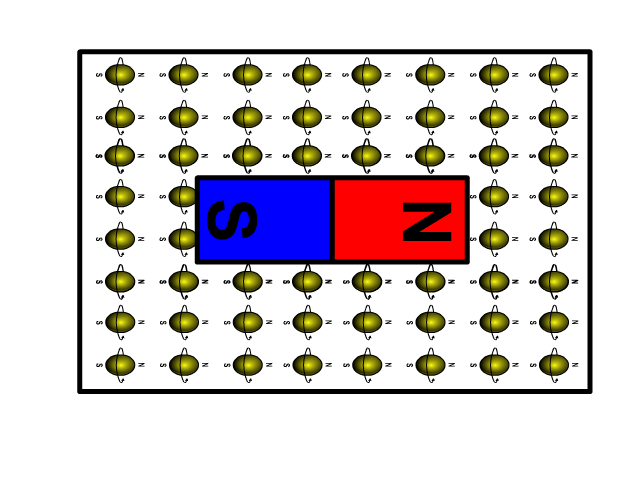

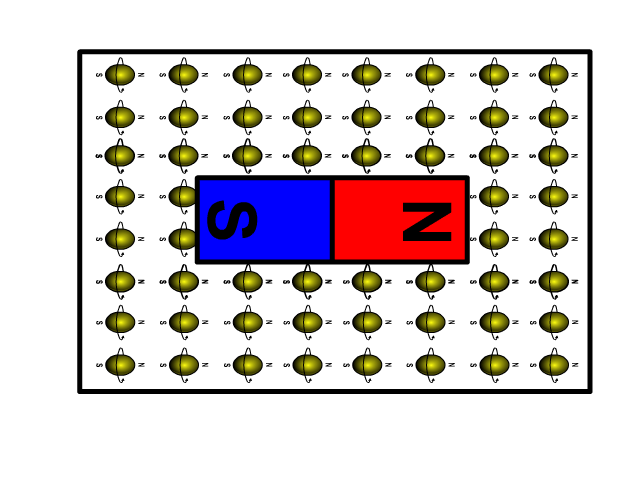

Breaking a Permanent Magnet Creates Two Weaker Ones

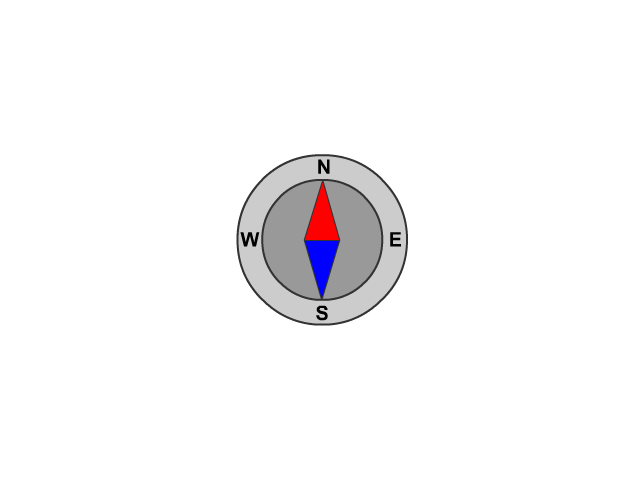

The Compass

  • A compass is a magnet that is free to rotate when interacting with a magnetic field.

The earth itself is acts like a magnet believed to be caused by current in its outer core.  When a magnet is brought close to a compass the stronger local magnet field will interact with the compass.

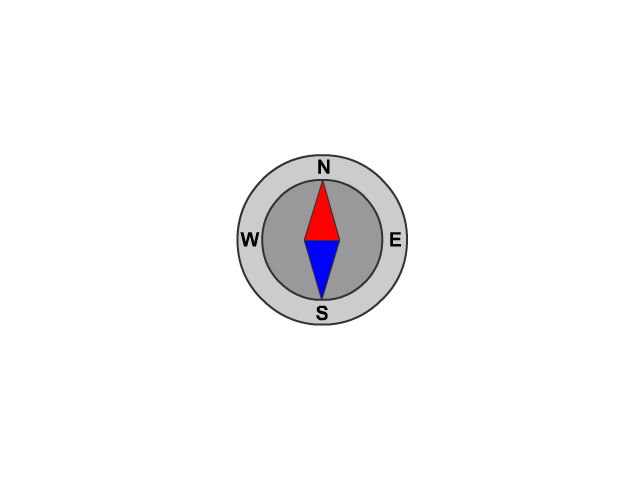

A compass is free to rotate in a magnetic field

A Compass Rotating in a Magnetic Field

Earth's Magnetic and Geographic Poles

The earths geographic north pole is an unchanging location where the earth's surface intersects its north rotational axis.

In some texts, the earths magnetic north is defined by the location where a compass north, if held directly above it, would point directly down.

In reality, earth’s magnetic field creates a similar pattern as a large bar magnet with the magnetic south pole facing upwards.  This magnetic south pole is located close to what we geographically call north and has been moving slowly. Therefore the north of a compass is attracted to a magnetic south of earth.

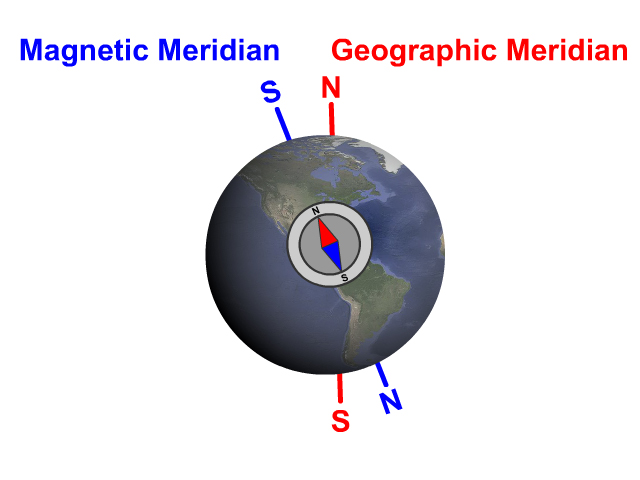

Magnetic Declination

A compass north will take you close to the north geographic pole.  Depending where you are located the angle between the geographic meridian north and where a compass points north (magnetic meridian south in our image) will be different.  The slight angle difference from where the compass says is north and geographic north is called the magnetic declination.

  • More about magnetic declination from NOAA (National Oceanic and Atmospheric Administration)
  • Five Things You Did Not Know About the North Pole- NOAA

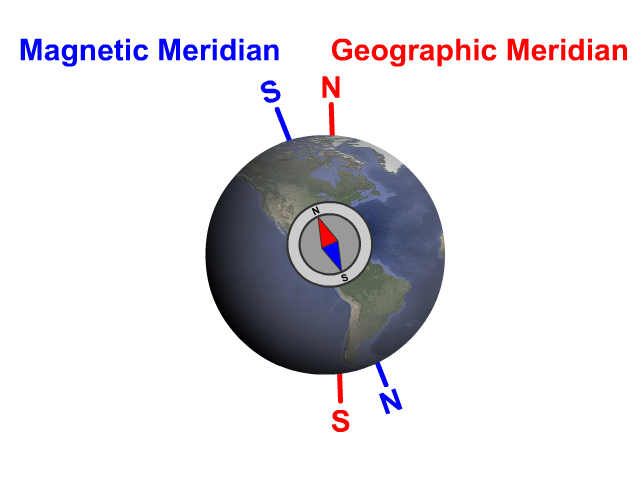

Magnetic and Geographic North and South

Magnetic and Geographic Poles
